The Cisco Aironet 1560 Series Outdoor Access Points are designed to provide high-performance, reliable wireless connectivity in challenging outdoor environments. These access points utilize the IEEE 802.11ac Wave 2 standard, offering a robust and low-profile solution for service providers and enterprises that require fast, consistent links for mobile devices and wireless backhaul.

By combining rugged hardware with advanced wireless innovations, the 1560 Series ensures that network operators can maintain high throughput even in bandwidth-intensive applications. Whether deployed as a traditional access point or within a wireless mesh network, the series offers the flexibility needed to balance coverage requirements with ease of installation.

Product overview

The Cisco Aironet 1560 Series includes three primary models: the 1562I, which features internal semi-omnidirectional antennas; the 1562E, designed for use with external antennas; and the 1562D, which comes equipped with internal directional antennas. Each model is built to withstand harsh weather conditions while providing high-speed data rates and efficient network management.

These access points are engineered to support modern high-density environments through features like Cisco CleanAir, ClientLink, and Radio Resource Management. Additionally, the series supports the Cisco Mobility Express solution, allowing for simplified setup and management in small to medium-sized networks without the need for a dedicated physical controller.

Features and benefits

  • 802.11ac Wave 2 Radio: Delivers data rates up to 1.3 Gbps using 3x3 MIMO technology and three spatial streams.
  • Multiuser MIMO (MU-MIMO): Enables simultaneous data transmission to multiple 802.11ac Wave 2-capable clients, significantly improving the overall user experience.
  • Flexible Deployment Modes: Supports various configurations, including point-to-point and mesh networks, as well as the controller-less Cisco Mobility Express solution.
  • SFP Port: Provides optical fiber-based network connectivity, which is ideal for remote or long-distance deployments.
  • 5-GHz Support: Doubles the scale of 5-GHz mobile devices and enhances performance in high-density areas.
  • 4G LTE Coexistence: Incorporates robust filtering to block interference from nearby 4G LTE cellular signals in the 2.4 GHz band.
  • Cisco Flexible Antenna Port Technology: Allows for software-configurable antenna ports, enabling the use of either single-band or dual-band antennas to optimize coverage.
  • Cisco High Density Experience (HDX): Utilizes customized chipsets and advanced RF architecture to ensure network efficiency and high performance for a large number of concurrent users.
2021-12-13 :Updated

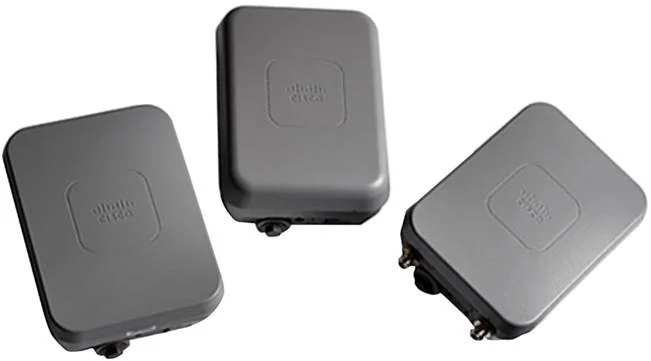

Cisco Aironet 1560 Series Outdoor Access Points offer the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily.


Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package. The 1560 Series offers flexible deployment options for service providers and enterprise networks, that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. With options for internal or external antennas, the 1560 Series Access Points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment. The Cisco Aironet 1560 Series is built on the strong base of Cisco wireless innovations such as:

●Cisco CleanAir technology for spectrum intelligence

●Cisco ClientLink technology for beamforming

●Radio Resource Management (RRM) for dynamic transmitter channel and power control

Whether deployed as a traditional access point or wireless mesh access point, the Cisco Aironet 1560 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.

Features and benefits

Table 1 lists the features and benefits of the Cisco Aironet 1560 Series.

Table 1.Features and Benefits of Cisco Aironet 1560 Series

Feature

Benefit

802.11ac Wave 2 radio

Provides up to 1.3-Gbps data rates with 3 x 3 Multiple Input, Multiple Output (MIMO) and up to three spatial streams

Multiuser MIMO
(MU-MIMO)

Allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience; prior to 802.11ac Wave 2, access points could transmit data to only one client at a time, typically referred to as single-user MIMO

Flexible deployment modes

Allows for deployment of the 1560 in a variety of ways including point -to-point and mesh networks; it can also be deployed with the Cisco Mobility Express Solution, which is ideal f or small to medium -sized deployments that supports multiple access points without a physical controller; all deployment modes are easy to set up and configure

Small Form-Factor Pluggable (SFP) port

Supports optical fiber-based network connectivity for remote locations

Prominent feature/differentiator/capability

The Cisco Aironet 1560 Series offers the following features:

●Improved performance for multiple client devices: The 802.11ac Wave 2 access points use MU-MIMO technology, which allows different data streams to all flow at once from the access point to multiple 802.11ac Wave 2-supported devices. Now, multiple 802.11ac Wave 2 devices can connect at the same time, getting the information they need quicker.

●5-GHz support: The Cisco Aironet 1560 Series doubles the scale of 5 -GHz mobile devices and raises the performance of high-density environments.

●4G LTE Coexistence: The Cisco Aironet 1560 Series includes robust filtering around the 2.4 GHz unlicensed band to block out nearby licensed 4G LTE cellular signals.

●Cisco Flexible Antenna Port technology uses software configurable for either single- or dual-band antennas. It allows you to use the same antenna ports for either dual-band antennas to reduce footprint or single-band antennas to optimize radio coverage.

●Cisco Mobility Express: This solution is designed to bring enterprise-class wireless access to small and medium-sized networks. Easy to set up with low maintenance, Mobility Express includes advanced features from Cisco and does not require a physical controller appliance.

●Cisco High Density Experience (HDX): Cisco HDX comes standard on the 1560, giving this access point top-of-the-line network efficiency over a large number of wireless clients. HDX uses customized chipsets to target the needs of high-density networks. It is built with best-in-class RF architecture and gives a better user experience for high-performance applications.

Product specifications

Table 2 lists the specifications of the 1560 access point.

Table 2.Specifications of Cisco Aironet 1560 Series

Item

Specification

802.11ac Wave 1 and 2 capabilities
●1562I: 3 x 3 MIMO with three spatial streams
●1562E/D 2 x 2 MIMO with two spatial streams
●Multi- and single-user MIMO
●Maximal Ratio Combining (MRC)
●802.11ac beamforming (transmit beamforming)
●20-, 40-, and 80-MHz channels
●PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
●Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
●802.11 Dynamic Frequency Selection (DFS)
●Cyclic-Shift-Diversity (CSD) support

802.11n
(and related) capabilities
●1562I: 3 x 3 MIMO with three spatial streams
●1562E/D: 2 x 2 MIMO with two spatial streams
●MRC
●20- and 40-MHz channels
●PHY data rates up to 450 Mbps
●Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
●802.11 DFS
●CSD support

Data rates supported

802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11n data rates on 2.4 and 5 GHz:

MCS Index

GI4 = 800 ns

GI = 400 ns

20-MHz Rates (Mbps)

40-MHz Rates (Mbps)

20-MHz Rates (Mbps)

40-MHz Rates (Mbps)

0

6.5

13.5

7.2

15

1

13

27

14.4

30

2

19.5

40.5

21.7

45

3

26

54

28.9

60

4

39

81

43.3

90

5

52

108

57.8

120

6

58.5

121.5

65

135

7

65

135

72.2

150

8

13

27

14.4

30

9

26

54

28.9

60

10

39

81

43.3

90

11

52

108

57.8

120

12

78

162

86.7

180

13

104

216

115.6

240

14

117

243

130

270

15

130

270

144.4

300

16

19.5

40.5

21.7

45

17

39

81

43.3

90

18

58.5

121.5

65

135

19

78

162

86.7

180

20

117

243

130

270

21

156

324

173.3

360

22

175.5

364.5

195

405

23

195

405

216.7

450

802.11ac Data Rates (5 GHz)

Spatial Streams

MCS

GI = 800 ns

GI = 400 ns

20 MHz

40 MHz

80 MHz

20 MHz

40 MHz

80 MHz

1

0

6.5

13.5

29.3

7.2

15

32.5

1

1

13

27

58.5

14.4

30

65

1

2

19.5

40.5

87.8

21.7

45

97.5

1

3

26

54

117

28.9

60

130

1

4

39

81

175.5

43.3

90

195

1

5

52

108

234

57.8

120

260

1

6

58.5

121.5

263.3

65

135

292.5

1

7

65

135

292.5

72.2

150

325

1

8

78

162

351

86.7

180

390

1

9

–

180

390

–

200

433.3

2

0

13

27

58.5

14.4

30

65

2

1

26

54

117

28.9

60

130

2

2

39

81

175.5

43.3

90

195

2

3

52

108

234

57.8

120

260

2

4

78

162

351

86.7

180

390

2

5

104

216

468

115.6

240

520

2

6

117

243

526.5

130

270

585

2

7

130

270

585

144.4

300

650

2

8

156

324

702

173.3

360

780

2

9

–

360

780

–

400

866.7

3

0

19.5

40.5

87.8

21.7

45

97.5

3

1

39

81

175.5

43.3

90

195

3

2

58.5

121.5

263.3

65

135

292.5

3

3

78

162

351

86.7

180

390

3

4

117

243

526.5

130

270

585

3

5

156

324

702

173.3

360

780

3

6

175.5

364.5

–

195

405

–

3

7

195

405

877.5

216.7

450

975

3

8

234

486

1053

260

540

1170

3

9

260

540

1170

288.9

600

1300

Frequency band and 20- MHz operating channels (regulatory domains)

A:

2.412 to 2.462 GHz, 11 channels

5.280 to 5.320 GHz, 3 channels

5.500 to 5.580 GHz, 5 channels

5.660 to 5.700 GHz, 3 channels

5.745 to 5.825 GHz, 5 channels

B:

2.412 to 2.462 GHz, 11 channels

5.180 to 5.240 GHz, 4 channels

5.260 to 5.320 GHz, 4 channels

5.500 to 5.720 GHz, 12 channels

5.745 to 5.825 GHz, 5 channels

C:

2.412 to 2.472 GHz, 13 channels

5.745 to 5.825 GHz, 5 channels

D:

2.412 to 2.462 GHz, 11 channels

5.745 to 5.865 GHz, 7 channels

E:

2.412 to 2.472 GHz, 13 channels

5.500 to 5.580 GHz, 5 channels

5.660 to 5.700 GHz, 3 channels

F:

2.412 to 2.472 GHz, 13 channels

5.745 to 5.805 GHz, 4 channels

G:

2.412 to 2.472 GHz, 13 channels

5.745 to 5.825 GHz, 5 channels

-H:

2.412 to 2.472 GHz, 13 channels

5.745 to 5.825 GHz, 5 channels

-I:

2.412 to 2.472 GHz, 13channels

5.180 to 5.320 GHz, 8channels (Supported countries - *Egypt)

-K:

2.412 to 2.462 GHz, 11 channels

5.280 to 5.320 GHz, 3 channels

5.500 to 5.620 GHz, 7 channels

5.745 to 5.805 GHz, 4 channels

-L:

2.412 to 2.472 GHz, 13 channels

5.500 to 5.620 GHz, 7 channels

5.745 to 5.865 GHz, 7 channels

-M:

2.412 to 2.472 GHz, 13 channels

5.500 to 5.580 GHz, 5 channels

5.660 to 5.700 GHz, 3 channels

5.745 to 5.805 GHz, 4 channels

-N:

2.412 to 2.462 GHz, 11 channels

5.745 to 5.825 GHz, 5 channels

-Q:

2.412 to 2.472 GHz, 13 channels

5.500 to 5.700 GHz, 11 channels

-R:

2.412 to 2.472 GHz, 13 channels

5.260 to 5.320 GHz, 4 channels

5.660 to 5.700 GHz, 3 channels

5.745 to 5.825 GHz, 5 channels

-S:

2.412 to 2.472 GHz, 13 channels

5.500 to 5.700 GHz, 11 channels

5.745 to 5.825 GHz, 5 channels

-T:

2.412 to 2.462 GHz, 11 channels

5.500 to 5.580 GHz, 5 channels

5.660 to 5.700 GHz, 3 channels

5.745 to 5.825 GHz, 5 channels

-Z:

2.412 to 2.462 GHz, 11 channels

5.500 to 5.580 GHz, 5 channels

5.660 to 5.700 GHz, 3 channels

5.745 to 5.825 GHz, 5 channels

Note: Customers are responsible f or verifying approval f or use in their individual countries. To verify approval that corresponds t o a particular country, please visit https://www.cisco.com/go/aironet/compliance.

Maximum number of nonoverlapping channels

2.4 GHz

●802.11b/g:

●20MHz:3

●802.11n:

●20MHz:3

●40 MHz:1(hardwarecapable)

5GHz

●802.11a:

●20MHz:27

●802.11n:

●20MHz:27

●40MHz:13

●802.11ac:

●20MHz:27

●40MHz:13

●80MHz:6

Note: This number varies by regulatory domain. Refer to the product documentation f or specific details f or each regulatory domain.

Receive Sensitivity

2.4 GHz Radio

5 GHz Radio

Spatial Streams

1562I

1562D/E

1562I

1562D/E

802.11/11b

1 Mbps

1

-100

-98

NA

NA

11 Mbps

1

-88

-87

NA

NA

802.11a/g

6 Mbps

1

-92

-90

-94

-93

24 Mbps

1

-86

-83

-89

-88

54 Mbps

1

-76

-74

-80

-79

802.11n HT20

MCS0

1

-90

-89

-91

-90

MCS4

1

-84

-82

-88

-86

MCS7

1

-77

-75

-80

-78

MCS8

2

-89

-88

-90

-89

MCS12

2

-82

-80

-85

-83

MCS15

2

-75

-72

-78

-76

MCS16

3

-89



-90



MCS20

3

-81



-84



MCS23

3

-73



-76



802.11n HT40

MCS0

1

-88

-86

-90

-90

MCS4

1

-82

-80

-85

-83

MCS7

1

-75

-74

-78

-76

MCS8

2

-87

-86

-90

-90

MCS12

2

-80

-78

-82

-81

MCS15

2

-72

-70

-75

-73

MCS16

3

-87



-90



MCS20

3

-78



-81



MCS23

3

-71



-74



802.11ac VHT20

MCS0

1

-95

-94

MCS4

1

-88

-86

MCS7

1

-81

-79

MCS8

1

-77

-75

MCS0

2

-94

-93

MCS4

2

-86

-84

MCS7

2

-78

-76

MCS8

2

-74

-72

MCS0

3

-93



MCS4

3

-85



MCS7

3

-78



MCS8

3

-72



MCS9

3

-69



802.11ac VHT40

MCS0

1

-91

-90

MCS4

1

-85

-84

MCS7

1

-79

-77

MCS8

1

-75

-73

MCS9

1

-73

-71

MCS0

2

-91

-90

MCS4

2

-83

-82

MCS7

2

-76

-74

MCS8

2

-73

-70

MCS9

2

-71

-68

MCS0

3

-91



MCS4

3

-82



MCS7

3

-74



MCS8

3

-69



MCS9

3

-68

802.11ac VHT80

MCS0

1

-88

-88

MCS4

1

-83

-81

MCS7

1

-75

-73

MCS8

1

-71

-69

MCS9

1

-69

-67

MCS0

2

-88

-88

MCS4

2

-80

-78

MCS7

2

-73

-71

MCS8

2

-69

-67

MCS9

2

-67

-65

MCS0

3

-88



MCS4

3

-78



MCS7

3

-71



MCS8

3

-67



MCS9

3

-65



Maximum conducted transmit power

1562I

●2.4 GHz: 29 dBm with 3 antennas
●5 GHz: 29 dBm with 3 antennas

1562D

●2.4 GHz: 27 dBm with 2 antennas
●5 GHz: 27 dBm with 2 antennas

1562E

●2.4 GHz: 27 dBm with 2 antennas
●5 GHz: 27 dBm with 2 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation f or specific details.

Interfaces
●WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
●SFP port (fiber or electrical)
●Management console port (RJ-45)
●Multicolor LED
●DC power input
●Reset button

Uplink options

Ethernet, SFP, and wireless mesh

Dimensions
(L x W x D)

1562I: 9.0 x 6.8 x 3.9 in.                   (22.9 x 17.1 x 9.8 cm)

1562D: 9.0 x 6.8 x 4.3 in.                 (22.9 x 17.1 x 10.9 cm)

1562E:: 9.0 x 6.8 x 3.9 in.                 (22.9 x 17.1 x 9.8 cm)

Weight

1562I: 5.6 lb (2.5 kg)

1562D: 5.7 lb (2.6 kg)

1562E: 5.6 lb (2.5 kg)

Environmental

Operating temperature:

● –40 to 65°C (–40 to 149°F) ambient air with no solar loading
●–40 to 55°C (–40 to 131°F) ambient air with solar loading

Storagetemperature:–40 to85°C(–40to185°F)

Humidity: 5 - 95%, non-condensing

Wind resistance:

●Up to 100-mph sustained winds
●Up to 165-mph wind gusts

Environmental ratings
●IEC 60529 IP67
● NEMA Type 4X
●Icing protection            NEMA 250-2008
●Corrosion                    NEMA 250-2008 (600 hours)
●Solar radiation             EN 60068-2-5 (1200 W/ m2)
●Vibration MIL-STD-810

Antennas
●Integrated dual-band semi-omnidirectional antenna radome, (1562I) 7 dBi (2.4 GHz), 4 dBi (5 GHz)
●Integrated dual-band directional antenna radome, (1562D) 9 dBi (2.4 GHz), 10 dBi (5 GHz)
● DualBand

●AIR-ANT2568VG-N             6 dBi (2.4 GHz),        8 dBi (5 GHz)                                           Omni

●AIR-ANT2547VG-N             4 dBi (2.4 GHz),        7 dBi (5 GHz)                                           Omni

●AIR-ANT2547V-N                4 dBi (2.4 GHz),        7 dBi (5 GHz)                                           Omni

●AIR-ANT2588P3M-N=         8 dBi (2.4 GHz),        8 dBi (5 GHz)                                           Directional

●AIR-ANT2513P4M-N=         13 dBi (2.4 GHz),      13 dBi (5 GHz)                                           Directional

● SingleBand

2.4GHz

●AIR-ANT2450V-N=              5 dBi (2.4 GHz),        Omni

●AIR-ANT2450VG-N=           5 dBi (2.4 GHz),        Omni, vertical polarized

●AIR-ANT2450HG-N=           5 dBi (2.4 GHz),        Omni, horizontal polarized

●AIR-ANT2480V-N=              8 dBi (2.4 GHz),        Omni

●AIR-ANT2413P2M-N=         13 dBi (2.4 GHz),      Directional, dual polarized

5GHz

●AIR-ANT5150VG-N=            5 dBi (5GHz),            Omni, vertical polarized

●AIR-ANT5150HG-N=           5 dBi (5GHz),            Omni, horizontal polarized

●AIR-ANT5180V-N=              8 dBi (5GHz),            Omni

●AIR-ANT5114P2M-N=         14 dBi (5GHz),          Directional, dual polarized

Forantennadetails,pleaserefertotheantennawebpage:https://www.cisco.com/go/antennas

Poweringoptions
●AC (with AIR-PWRADPT-RGD1=, AC/DC outdoor power adapter)
●44–57 VDC input
●Universal Power of Ethernet (Cisco UPoE+ and Cisco UPoE), 802.3at
●Cisco power injectors:

AIR-PWRINJ-60RGD1=(outdoorrated,60W,withNEMA5-15ACplug)

AIR-PWRINJ-60RGD2=(outdoorrated,60W,unterminatedACcable)

AIR-PWRINJ6=(indoor,802.3at)

Note: If 802.3at Power over Ethernet (PoE) is the source of power, the 1562I radios will shift from 3 x 3 to 2 x 2.

Powerconsumption

1562I            32 W (3x3:3, full power)

1562D/E       25 W

Compliance

Safety

●UL60950, 2 nd Edition
● CAN/CSA-C22.2 No. 60950, 2 nd Edition
●IEC 60950, 2 nd Edition
●EN 60950, 2 nd Edition

Immunity

● <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform
●ANSI/IEEE C62.41
●EN61000-4-5 Lev el 4 AC Surge Immunity
●EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity
●EN61000-4-3 Lev el 4 EMC Field Immunity
●EN61000-4-2 Lev el 2 ESD Immunity
●EN60950 Overvoltage Category IV

RadioApprovals

●FCC Part 15.247, 15.407
●FCC Bulletin OET-65C
●RSS-247
●RSS-102
● AS/NZS 4268.2003
●ARIB-STD 66 (Japan)
●ARIB-STD T71 (Japan)
● EN 300 328
●EN 301 893

EMIandSusceptibility

●FCC part 15.107, 15.109
●ICES-003
●EN 301 489-1, -17

Security

●Wireless bridging/mesh (future availability)
● X.509 digital certificates
● MAC address authentication
●Adv anced Encryption Standard (AES)

WirelessAccess

●802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA
●802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module - (EAP-SIM), and Cisco LEAP
●VPN pass-through
●IP Security (IPsec)
●Layer 2 Tunneling Protocol (L2TP)
●MAC address filtering

Warranty

1-year limited hardware warranty

Ordering Information

Table 3 gives ordering information for the Cisco Aironet 1560 Series.

Table 3.Ordering Information for Cisco Aironet 1560 Series

Part Number

Product Description

Aironet 1560 Series
●AIR-AP1562I-x-K9: Dual-band 802.11a/g/n/ac, Wave 2, internal semi-omni antennas
●AIR-AP1562E-x-K9: Dual-band 802.11a/g/n/ac, Wave 2, external antennas
●AIR-AP1562D-x-K9: Dual-band 802.11a/g/n/ac, Wave 2, internal directional antennas

Regulatory domains: (x = regulatory domain)

Customers are responsible f or verifying approval f or use in their individual countries. To verify approval that corresponds to a particular country or the regulatory domain used in a specific country, visit https://www.cisco.com/go/aironet/compliance.

Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.

●AIR-AP1562I-D-K9I: Dual-band 802.11a/g/n/ac, Wave 2, internal antennas (India only)

Cisco SMARTnetService for the Cisco Aironet 1560 Series Access Points

Refer to the Service part numbers available on Cisco Commerce Workspace f or available service offerings.

For more information

For more information about the Cisco Aironet 1560 Series, visit https://www.cisco.com/go/wireless or contact your local Cisco account representative.
Model AIR-AP1562E-D-K9
Category Cisco Wireless LAN Products
Subcategory 1560 Series Outdoor Access Point
Description 802.11ac W2 Low-Profile Outdoor AP, External Ant, D Reg Dom.
Price 2,006.46 USD
Last Update 2021-04-29

Be the first to write a review for this product.

Write a review

Please login or register to review
