Introduction
The Cisco 500 Series Wireless Personal Area Network (WPAN) Industrial Routers represent a significant advancement in the realm of industrial connectivity, specifically engineered to meet the rigorous demands of utility companies and industrial environments. As the digital transformation of critical infrastructure accelerates, the need for reliable, secure, and scalable communication networks has never been more pressing. These routers are designed to serve as the backbone for Advanced Metering Infrastructure (AMI), distribution automation, and various Internet of Things (IoT) applications, ensuring that data flows seamlessly even in the most challenging operational conditions. By integrating robust hardware with sophisticated software capabilities, Cisco has created a solution that addresses the unique challenges of field area networks, where environmental factors and security threats are constant concerns.
These industrial-grade devices are built to withstand extreme temperatures, vibrations, and electromagnetic interference, which are typical in outdoor and industrial settings. Beyond their physical durability, the 500 Series routers provide a unified platform that simplifies network management and reduces operational complexity. By offering support for multiple communication standards, they enable organizations to future-proof their investments while maintaining compatibility with legacy systems. This strategic approach to network architecture allows utility providers and industrial operators to gain deeper insights into their assets, optimize performance, and enhance the overall reliability of their services. The focus is clearly on providing a resilient foundation that supports the growing data requirements of modern industrial ecosystems, ensuring that connectivity remains uninterrupted and secure across vast and distributed geographical areas.
Product overview
The Cisco 500 Series WPAN Industrial Routers are primarily categorized into two main models: the IR510 and the IR530. The IR510 is a compact, cost-effective solution designed for smaller-scale deployments or specific edge applications where space and power efficiency are critical. It provides essential connectivity features that allow for reliable data transmission in remote locations, making it an ideal choice for smart metering and basic sensor monitoring. Despite its smaller footprint, the IR510 does not compromise on the core security and management features that Cisco is known for, ensuring that even the most remote endpoints are protected and manageable from a centralized location.
On the other hand, the IR530 is a more robust and versatile router, engineered to handle higher traffic volumes and more complex network requirements. It serves as a powerful gateway that can aggregate data from numerous endpoints, facilitating advanced distribution automation and large-scale IoT deployments. The IR530 is equipped with enhanced processing power and memory, allowing it to run more sophisticated applications at the edge. This capability is crucial for organizations that need to perform real-time data analysis and decision-making closer to the source, thereby reducing latency and bandwidth consumption. Both the IR510 and IR530 are designed to work harmoniously within the Cisco Connected Grid architecture, providing a cohesive and scalable solution that can grow alongside the evolving needs of the industrial sector. By offering these two distinct models, Cisco ensures that operators can select the right hardware for their specific use cases without over-provisioning or sacrificing performance.
Features and benefits
* WPAN Connectivity: Both models support IEEE 802.15.4g/e standards, providing reliable and long-range wireless communication for mesh networks, which is essential for smart grid deployments.
* Ruggedized Design: The routers are built to operate in harsh industrial environments, featuring high tolerance for extreme temperatures, humidity, and vibration, ensuring long-term reliability in outdoor installations.
* Advanced Security: Integrated security features, including hardware-based encryption and secure boot, protect the network from unauthorized access and cyber threats, safeguarding critical infrastructure data.
* Scalable Management: With support for Cisco IoT Field Network Director (FND), administrators can easily provision, monitor, and troubleshoot thousands of devices from a single dashboard, significantly reducing operational overhead.
* Edge Computing Capabilities: The IR530 model offers increased compute resources, enabling the execution of custom applications and local data processing, which helps in optimizing network traffic and response times.
* Interoperability: The routers support a wide range of communication protocols, ensuring seamless integration with existing utility infrastructure and third-party sensors or devices.
* Low Power Consumption: Designed with energy efficiency in mind, these routers help minimize the power footprint of remote installations, which is particularly beneficial for battery-operated or solar-powered setups.
* Future-Proof Architecture: The modular and software-defined nature of the 500 Series allows for remote firmware updates and feature enhancements, ensuring that the hardware remains relevant as communication standards and security requirements evolve over time.
* High Availability: The mesh networking capabilities ensure self-healing properties, where the network automatically reroutes traffic if a node fails, maintaining high uptime for critical utility services.
* Simplified Deployment: The plug-and-play nature of these devices, combined with automated configuration tools, allows for rapid deployment in the field, saving time and labor costs during large-scale rollouts.
Product overview
The Cisco® IR510 WPAN Industrial Router provides unlicensed 902-928MHz, ISM-band IEEE 802.15.4g/e/v Wireless Personal-Area Network (WPAN) communications to diverse Internet of things (IoT) applications. As the next generation of the DA gateway, besides supporting the IoT use cases of smart grid, Distribution Automation (DA), and Supervisory Control and Data Acquisition (SCADA), it also provides higher throughput, distributed intelligence, GPS, enhanced security. The router supplies enterprise-class RF mesh connectivity to IPv4, IPv6 and RS-232 serial IoT devices, including recloser controllers, capacitor bank controllers, voltage regulator controllers, regulators, distribution line monitors and other Remote Terminal Units (RTUs). Purpose-built to withstand outdoor harsh environments, the IR510 is ideal for installations in pad-mount and pole-mount cabinets and in other demanding locations.
The IR510 takes full advantage of world class Cisco networking expertise in IPv6, security, legacy protocol transport and network management, fog computing. It provides an open RF mesh solution based on the following standards:
● IEEE 802.15.4 g/e/v
● IETF 6LoWPAN
● IETF Routing Protocol for Low Power and Lossy Networks (RPL)
● IETF Mapping of Address and Port - Translation (MAP-T)
● IETF Constrained Application Protocol (CoAP)

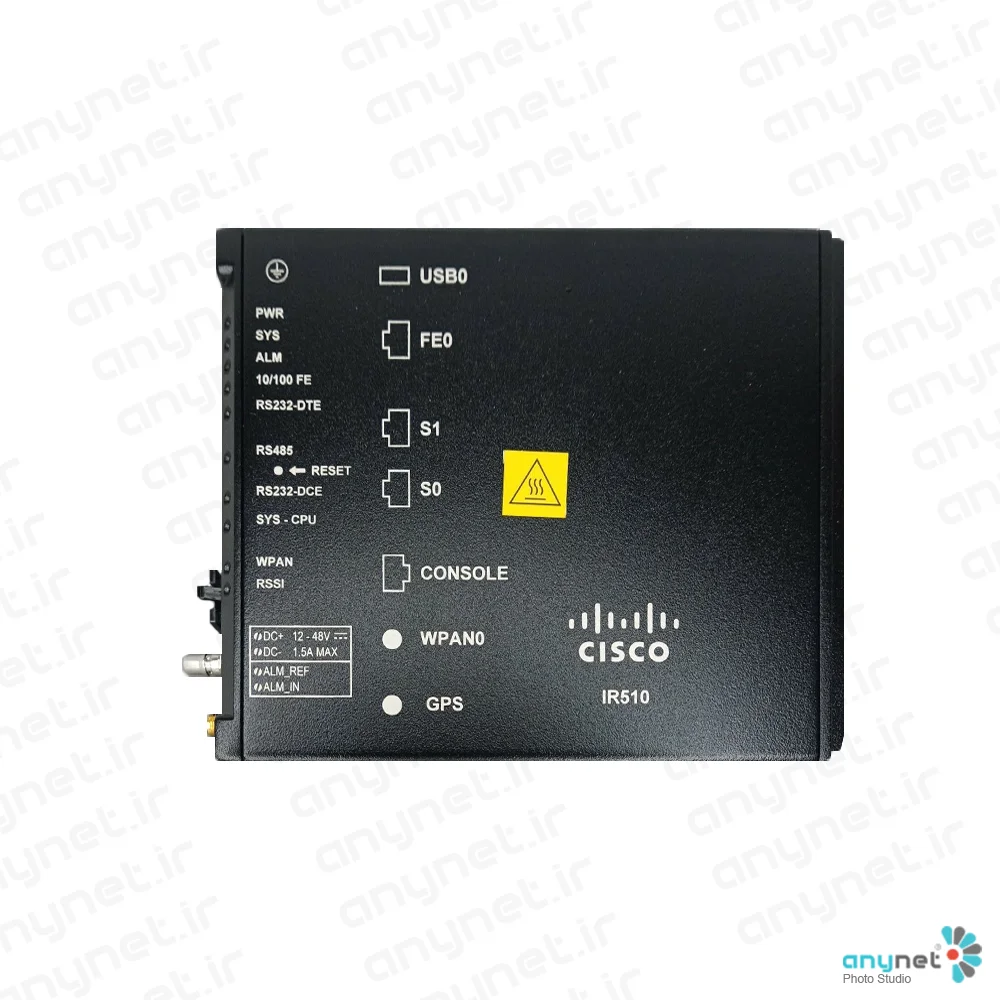

Figure 1 displays a Cisco WPAN Industrial Router IR510.
Solution overview
The IR510 is a component of the Cisco Industrial IoT Field Area Network (FAN) Solution, which meets these challenges using designs from the industry-leading Cisco GridBlocks™ Architecture. A typical communications network for the distribution grid is a two-tier architecture with a Neighborhood Area Network (NAN) and a Wide Area Network (WAN).
The NAN connects endpoints, such as DA devices, sensors, and smart meters, using a DA gateway or an embedded IPv6-based communications reference design’s device. The endpoints form a mesh network based on IEEE 802.15.4g/e/v RF or IEEE 1901.2a narrow band Power-Line Communications (PLC) technologies. The mesh network is aggregated at an intelligent device such as a Field Area Router (FAR) mounted on pole tops or in secondary substations. The WAN tier provides network connectivity from the FAR to the utility’s control center, over either a public cellular network or Ethernet fiber network.
The Cisco FAN solution comprises four important elements, as shown in Figure 2. They include:
● Cisco Resilient Mesh End point reference design, which provide CG-Mesh connectivity to end points such as DA devices, sensors and smart meters
● Cisco IR510 (DA gateway)
● Cisco 1000 Series Connected Grid Routers providing FAR capabilities
● Cisco ASR 1000 Series or CSR 1000v Aggregation Services Routers providing headend router (HER) capabilities
● Cisco IoT Field Network Director and Industrial Operations Kit for network management
Key benefits
● Lowers Total Cost of Ownership (TCO) by consolidating disparate communications networks used for Advanced Metering Infrastructure (AMI) and DA applications
● Address DA applications such as:
◦ Self-healing grid and Fault Location Isolation Service Restoration (FLISR)
◦ Volt/VAR monitoring and control (VVC)
◦ Power quality monitoring and distribution grid sensing
◦ Asset management
◦ Outage management
● Delivers a communications platform for standards-based, interoperable smart grid and IoT applications using IP-based technologies and innovations
● Increases communications network uptime and grid availability, helps ensure message delivery through a rugged industrial hardware design and highly resilient solution architecture
● Improves visibility, availability, and reliability of the distribution grid through enterprise-class network
● Facilitates graceful migration and integration of legacy assets with support for several IoT-specific protocols
● Features a compact form factor and low-power design to support connectivity to a diverse set of IoT end devices
● Integrates into customers’ existing IT and security solutions, reduces project costs, risks and eliminates the need for defining new IT processes
Cisco IR510 WPAN Industrial router features
Table 1 lists hardware specifications and Table 3 lists software features for the IR500.
Table 1. Cisco IR510 hardware specifications
|
Feature |
IR510 Hardware Specifications |
|
Dimensions (W x D x H) |
5”W x 5.9”D x 1.75”H |
|
Typical Weight Fully Configured |
2.3 lbs. (1.04 kg) |
|
Operating Temperature |
-40°C to +70°C (-40°F to 158°F) with IEEE 1613 type test up to 85°C (185°F) for 16 hours |
|
Typical Power Consumption or Dissipation |
7 Watts, depending on configuration |
|
IEEE 802.15.4 WPAN |
IEEE 802.15.4g/e |
|
Frequency Support |
902-928 MHz (and subset of it to comply with national regulations) ● North America- ISM: 902-928 MHz
● Australia: 915-928 MHz
● Brazil: 902-907.5, 915-928 MHz
|
|
RF Modulations and PHY Data Rates |
Frequency Hopping Spread Spectrum (FHSS) OFDM: 31 channels in 902 – 928 MHz, 800kHz channel spacing. OFDM PHY data rates of 50 kbps, 200 kbps, 400 kbps, 800 kbps and 1200 kbps FHSS 2FSK 150 kbps: 64 channels in 902 – 928 MHz, 400 kHz channel spacing FHSS 2FSK 50 kbps: 129 channels in 902 – 928 MHz, 200 kHz channel spacing |
|
Average Conducted Transmitter Output Power |
30 dBm typical at all FSK rates 28 dBm typical at 50 kbps and 200 kbps OFDM 27 dBm typical at 400 kbps OFDM 25 dBm typical at 800 kbps OFDM 24 dBm typical at 1200 kbps OFDM |
|
Antenna Connector |
RF Mesh QMA (female), GPS: SMA (female) |
|
10/100 Fast Ethernet Copper Port (RJ-45) |
1 |
|
RS 232/RS 485 Serial Port RS 232 Serial |
1 |
|
Console Port (RJ-45 connector) |
1 |
|
Digital Alarm Inputs |
1 |
|
Integrated DC Power Supply Input Range |
12, 24 and 48 VDC (nominal), 9.6-60 VDC (maximum) |
|
Environmental Compliance |
● IEC-61850-3
● IEEE1613
● C37.90 high-voltage impulse
|
|
Immunity |
● EN61000-6-2
● EN61000-4-2 (ESD)
● EN61000-4-3 (RF)
● EN61000-4-4 (EFT)
● EN61000-4-5 (SURGE)
● EN61000-4-6 (CRF)
● EN61000-4-11 (VDI)
● EN 55024, CISPR 24
● EN 55035, CISPR 35
● EN61000-6-1
|
|
Emissions |
● 47 CFR, Part 15
● RSS-247
● ICES-003 Class A
● EN55032 Class A
● CISPR32 Class A
● AS/NZS 3548 Class A
● VCCI V-3
● CNS 13438
● EN 300-386
|
|
Safety |
● USA: UL 60950-1
● Canada: CAN/CSA C22.2 No. 60950-1
● Australia/New Zealand: AS/NZS 60950.1
● Rest of world: IEC 60950-1
● UL certified to UL/CSA 60950-1, 2nd Ed.
● CB report to IEC60950-1, 2nd Ed., covering all group differences and national deviations
|
Table 2. Cisco IR510 software specifications
|
Feature |
Software Specifications |
|
PHY/MAC Layer |
● IEEE 802.3 Ethernet 10/100 Mbps
● RS232/RS485 Serial
● IEEE 802.15.4g WPAN
● IEEE 802.15.4e WPAN MAC extensions
● 6LoWPAN – RFC 4919, 4944 and 6282
|
|
Network and Transport Layer |
● IPv4 (RFC 791, 826, 1918)
● IPv6 (RFC 2460)
● UDP (RFC 768)/TCP (RFC 793)
● IETF Routing Protocol for Low Power and Lossy Networks (RPL) (RFC 6206, 6550, 6551, 6553, 6554, 6719)
● NAT44 (RFC 1918 and 2663)
● MAP-T (RFC 7599)
● Adopted data rates:
◦ 1200, 800, 400, 200, 50 kbps OFDM
◦ 150 and 50 kbps 2FSK
● Per hop latency of 14ms
● Configurable leaf node
● RPL storing and non-storing mode
● Expand Static NAT entries
|
|
Application Features |
● Raw Sockets support on serial ports (for transport of non-IP protocols such as DNP3 and other legacy serial protocols)
● DHCPv6 (RFC 3315) for IPv6 address allocation
● IETF Constrained Application Protocol (CoAP) for network management
● Dying Gasp
● Fog computing
|
|
Security |
● Encryption: AES-128 (IEEE 802.11i for WPAN key management)
● Authentication and authorization: IEEE 802.1x for WPAN authentication and encryption; X.509 certificate support with integration into customer’s PKI
● Hardware-based device identity: IEEE 802.1AR (hardware-ready)
● Role-Based Access Control (RBAC) for device configuration
● Secure boot loader and signed firmware images
● Alarm on Ethernet port disconnect
● Alarm on new MAC address detection
● Option to disable Ethernet on port disconnection
● Option to disable Ethernet on new MAC address detection
|
|
Quality of Service |
● Classification and marking: Layer 3 - Differentiated Services Code Point (DSCP)
● Congestion management: Priority Queuing (PQ)
● DSCP based on source/destination IP address and TCP/UDP port, apply to strict priority scheduling
● Priority scheduling
● Rate limit on Ethernet
|
Table 3 lists the IR510 hardware product ID (PID)
Table 3. Cisco IR510 Product ID
|
Item |
Specification |
|
IR510-OFDM-FCC/K9 |
IR510 with 915MHz-WPAN, 1 FE, 2 serial, utility-grade DC power. For All North and South America except Brazil |
|
IR510-OFDM-BRZ/K9 |
IR510 with 915MHz-WPAN, 1 FE, 2 serial, utility-grade DC power. For Brazil |
|
IR510-OFDM-ANZ/K9 |
IR510 with 915MHz-WPAN, 1 FE, 2 serial, utility-grade DC power. For Australia and New Zealand |
Table 4 lists the antenna options for IR510.
Table 4. Cisco IR500 antenna options
|
Item |
Specification |
|
ANT-WPAN-OD-OUT-N |
● Omnidirectional antenna for 863 - 915 MHz WPAN
● N male connector
● Outdoor, direct mount to bulkhead N female lightning arrestor
● 1.5 dBi gain
|
|
ANT-WPAN-OM-OUT-N |
● Omnidirectional antenna for 902 - 928 MHz WPAN
● N female connector
● Outdoor, mast mount
● 4 dBi gain
|
|
ANT-LPWA-DB-O-N-5 |
● Omnidirectional antenna for 863 - 928 MHz WPAN
● N female connector
● Outdoor, mast mount
● 5.6 dBi gain
|
|
ANT-UN-MP-OUT-QMA |
● Omnidirectional antenna for 863 - 928 MHz WPAN
● 5 ft. (1.5 m) integrated cable with QMA male right angle connector
● Outdoor, mount to horizontal flat surface
● 2 dBi peak gain
|
|
ANT-GPS-OUT-TNC |
● Active GPS antenna
● Integrated cable with TNC male right angle connector
● 4 dBi gain at zenith, 25 dB LNA gain
|
Table 5 lists the RF cable options for the IR510.
Table 5. Cisco IR510 RF cable options
|
Item |
Specification |
|
Indoor Cable Options |
|
|
CAB-L240-10-Q-N |
10-ft (3 m) Low Loss LMR 240 Cable with QMA and N Connectors |
|
CAB-L240-15-Q-N |
15-ft (4.5 m) Low Loss LMR 240 Cable with QMA and N Connectors |
|
CAB-L240-20-Q-N |
20-ft (6 m) Low Loss LMR 240 Cable with QMA and N Connectors |
|
Outdoor Cable Options |
|
|
CAB-L400-5-N-N |
5-ft (1.5 m) Low Loss LMR 400 Cable with N Connectors (straight to right angle) |
|
CAB-L400-5-N-NS |
5-ft (1.5 m) Low Loss LMR 600 Cable with N Connectors (straight to straight) |
|
CAB-L400-20-N-N |
20-ft (6 m) Low Loss LMR 400 Cable with N Connectors |
|
CAB-L600-30-N-N |
30-ft (9.14 m) Ultra Low Loss LMR 600 Cable with N Connectors |
Table 6 lists additional accessories available for the IR510.
Table 6. Additional Accessories for Cisco IR510
|
Item |
Specification |
|
CGR-LA-NF-NF |
Lightning arrestor, N female to N female |
|
ANT-ADPTR-Q-TNC |
Connecting adapter for antennas- QMA to TNC |
For more information
● To find out more about the Cisco 500 WPAN Industrial Router family, visit https://www.cisco.com/go/ir500.
● For more information on the Cisco CGR 1000, visit https://www.cisco.com/go/cgr1000.
● For more information on the Cisco IoT Field Network Director, visit
https://www.cisco.com/en/US/products/ps12360/index.html.
● For more information on the Cisco ASR 1000, visit https://www.cisco.com/go/asr1000.
● For more information on the Cisco Field Area Network solution, visit https://www.cisco.com/go/fan.
